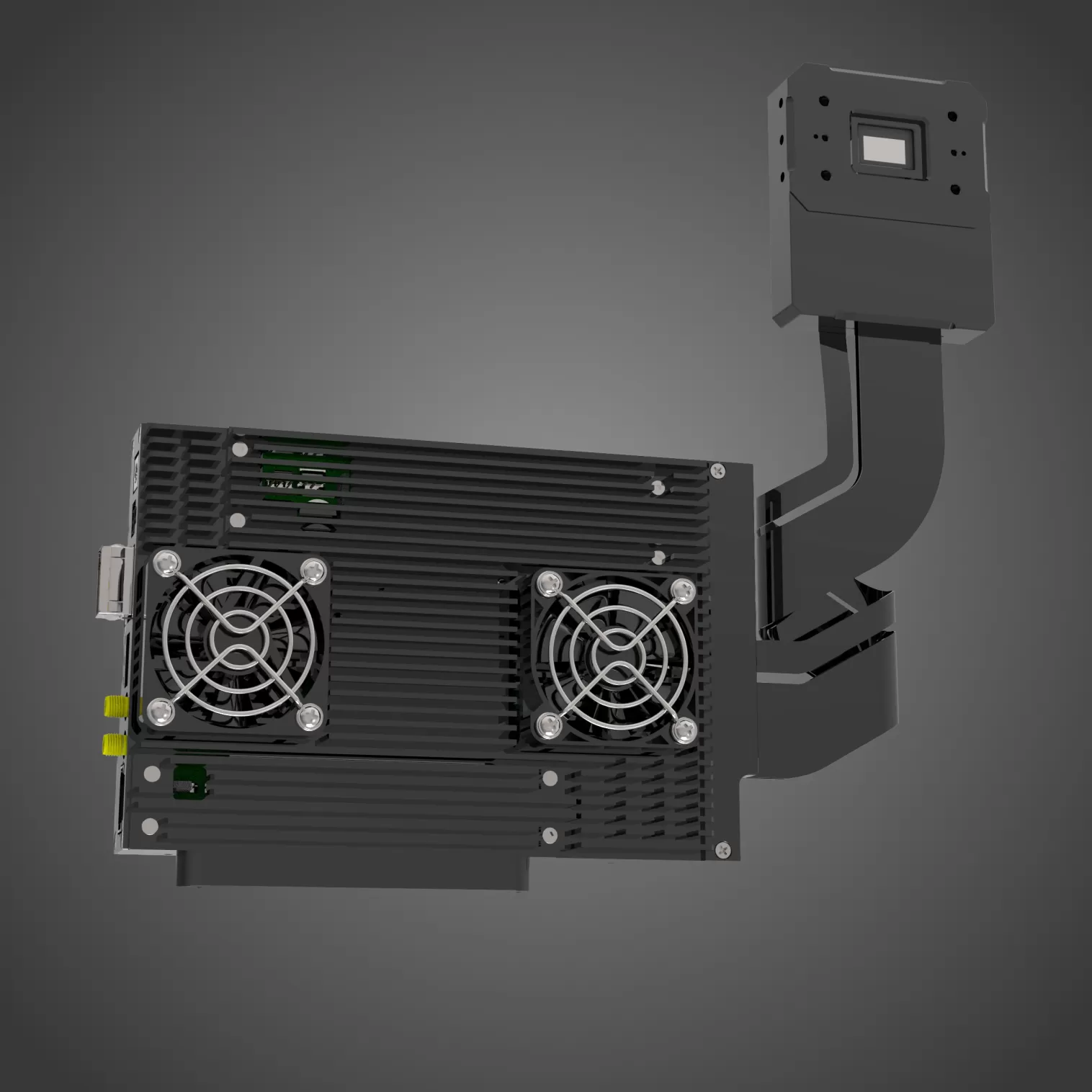

| ITEM | JUOPT-DLP6500 |
| Chipset | DLP6500X&DLPC910 |
| DLP Format | 0.65" 1080p |
| Window Options | VIS |
| Micromirror array size | 1920×1080 |
| Micromirror pitch | 7.56 μm |
| On-board RAM | 128 Gbit |
| Patterns in RAM 1 bit | 62136 |
| Patterns in RAM 8 bit | 7767 |
| Trigger | master / slave |
| Switching Rate 1 bit B/W | 10310 Hz |
| Switching Rate 8 bit Gray | 266 Hz |
| PC Interface | USB 3.0, 40G QSFP+ |
| PC Transfer Rate (USB 3.0) | >1600*fps |
| PC Transfer Rate (40G QSFP+) | >12800*fps |
| Active Mirror array Area | 14.5 x 8.2mm² |
| Controller Board Dimensions | 183×128×43.5 mm³ |
| DMD Board Dimensions | 84x70x30.6mm³ |
